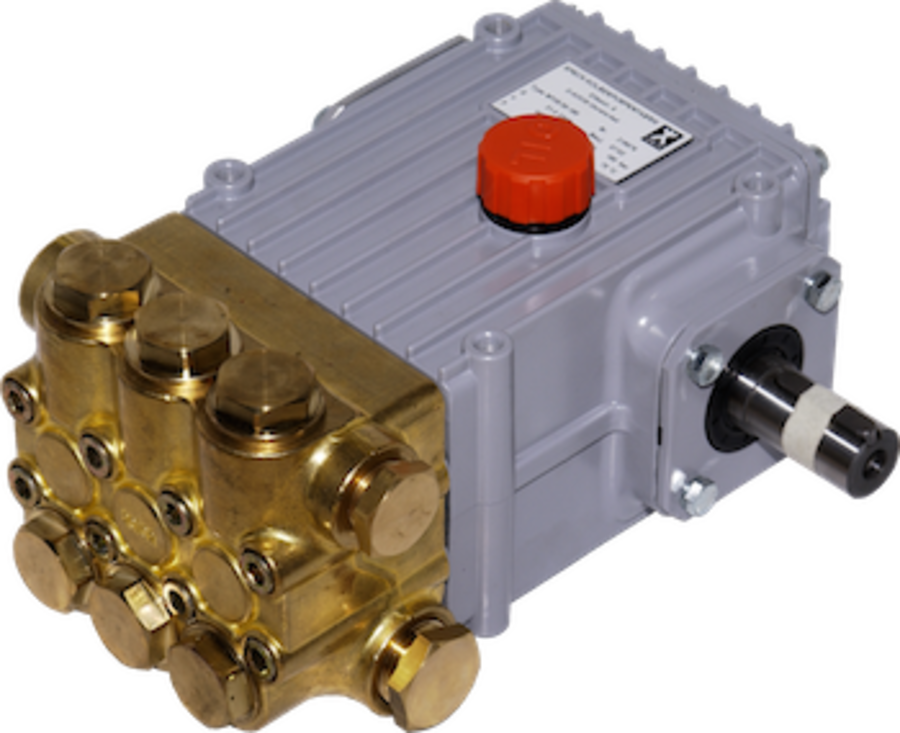

NP25/21-300 high pressure plunger triplex pump.
Specifications
Brand Speck
Type Short Stroke
Pressure bar 300
Flow l/min 20.8
Flow m3/h 1.24
Motor rpm 1450
Power kW 12.3
Temp max °C 70
Dimensions / Weights
Plunger diameter mm Ø18
Plunger diameter mm 18
Stroke mm 20
Connection in G3/4
Connection out G1/2
Weight kg 17.4
Weight lb 38
Application Water treatment
The majority of spares for these pumps are available from stock.
Quoted price avaliable on application
Brand Speck
Type Short Stroke
Pressure bar 300
Flow l/min 20.8
Flow m3/h 1.24
Motor rpm 1450
Power kW 12.3
Temp max °C 70
Dimensions / Weights
Plunger diameter mm Ø18
Plunger diameter mm 18
Stroke mm 20
Connection in G3/4
Connection out G1/2
Weight kg 17.4
Weight lb 38
Application Water treatment
The majority of spares for these pumps are available from stock.
Quoted price avaliable on application
Information
The Speck name is synonymous with quality and reliability. All our pumps are manufactured to the highest standards, using the latest in manufacturing technology.
The NP25 Range of pumps upholds this quality by providing:-
- Brass Valve Casings on standard versions
- Solid ceramic plungers.
- Double plunger sealing with leakage return.
- All gaskets in seal sleeves ensuring precise centring and easy replacement.
- Identical suction and discharge valves, easily replaceable.
- Crankcase from aluminium.
- Pump easily configured for left and right hand drive.
See link below for standard brochure
